TASK 06: Unprovisioning of existing serviceΒΆ
In the last task, we will remove our previously created VRF from our network. This will include removal of interfaces and vlans associate with it along with the VRF instance as well. In result, service will be completely removed from our network.

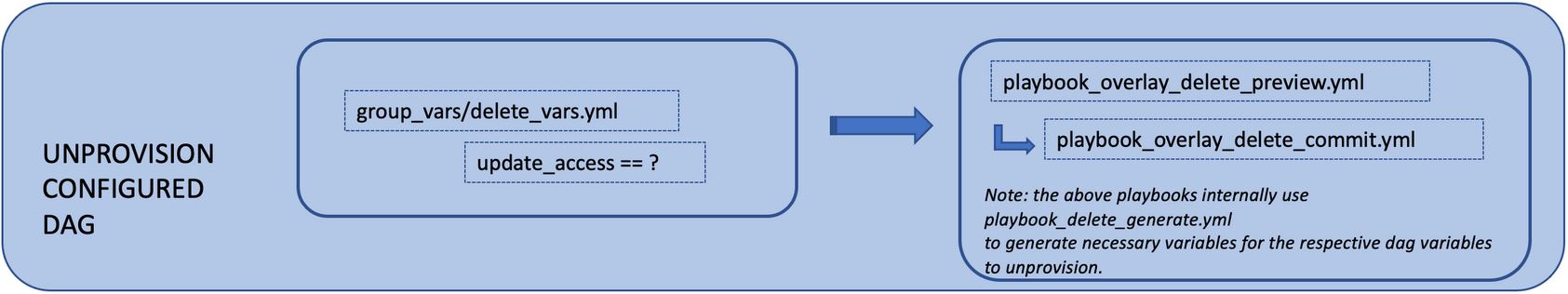

To delete specific instance from our devices, we must update delete variables where we will indicate, which VRF needs to be deleted. Delete variables can be found in the location below.

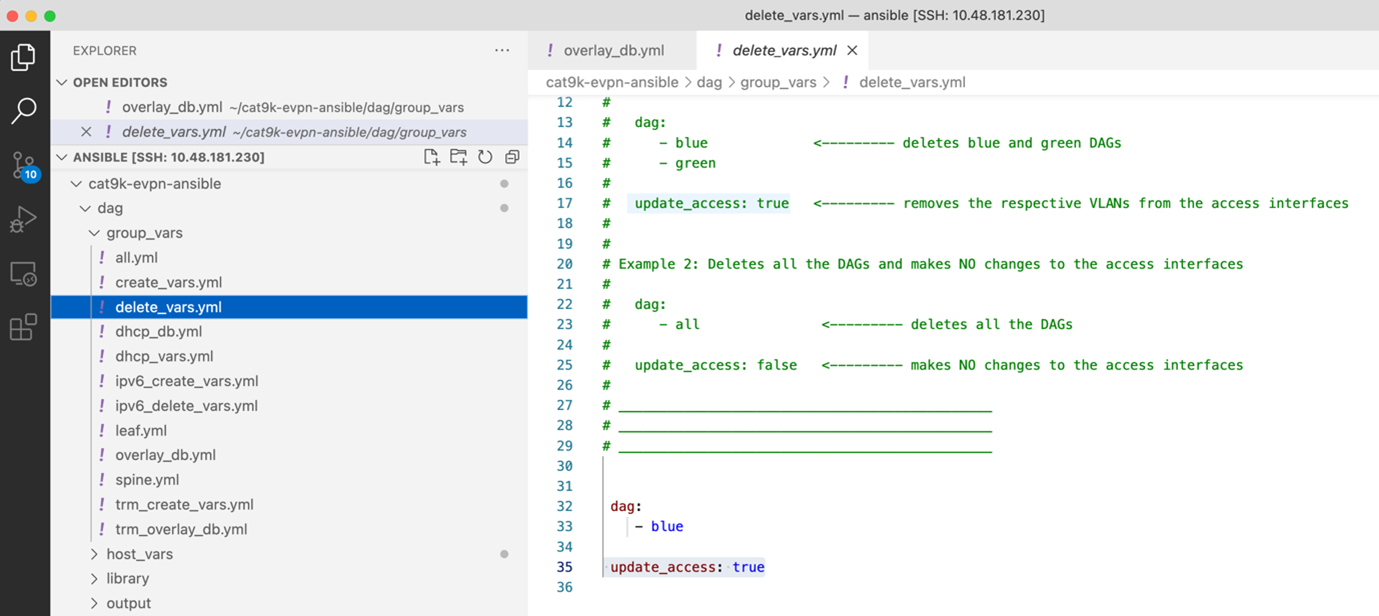

(ansible) ansible@iol-ansible:~/cat9k-evpn-ansible/dag$ cat group_vars/delete_vars.yml
In delete variables, we will also specify that we want to update our access interfaces, so vlans associated with VRF blue will be automatically removed from device. In order to preview our delete configuration, you can run ansible playbook below.
(ansible) ansible@iol-ansible:~/cat9k-evpn-ansible/dag$ ansible-playbook -i inventory.yml playbook_overlay_delete_preview.yml

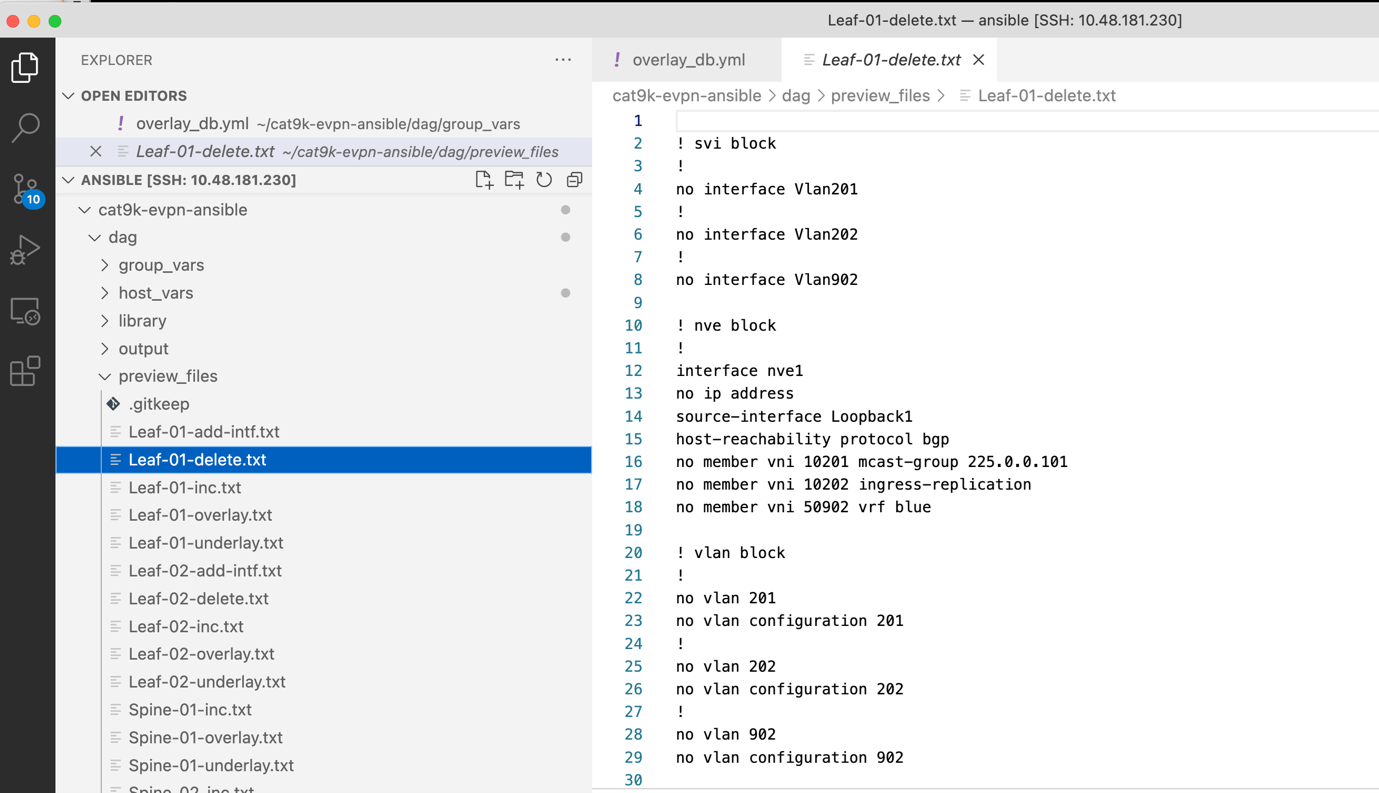

This playbook generated preview configuration into preview_files folder with -delete suffix. Please, feel free to take your time to examine content of the folder.
(ansible) ansible@iol-ansible:~/cat9k-evpn-ansible/dag$ ls preview_files/ | grep delete
Leaf-01-delete.txt
Leaf-02-delete.txt
Once we are ready, we can proceed with commit of changes into devices. To commit changes, we can run ansible playbook below.
(ansible) ansible@iol-ansible:~/cat9k-evpn-ansible/dag$ ansible-playbook -i inventory.yml playbook_overlay_delete_commit.yml
After this step, our VRF configuration was removed from devices. We can take a closer look again on Leaf-01. As we can see below, VRF blue was removed.
1Leaf-01#show vrf
2Name Default RD Protocols Interfaces
3green 1:1 ipv4,ipv6 Vl101
4 Vl102
5 Vl901
6 Lo11
7mgmt <not set> ipv4 Et1/3
